Installing SunriseWorkbench
This section explains how to install SunriseWorkbench on Linux using PortProton.
!!! note "Prerequisite" Before starting, make sure that PortProton is installed and configured. See Installing a Windows compatibility tool.
Starting the installer

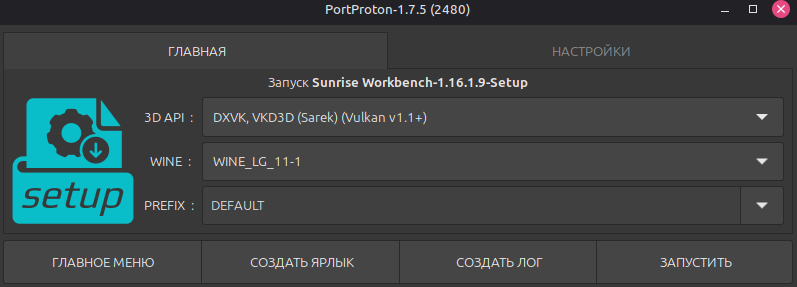

Step 1. Open the directory containing the SunriseWorkbench installer. Right-click the .exe file and select Open with → PortProton. Leave the default settings in the dialog and click Run.
Installation process
Step 2. Select the installation language (English by default) and click OK.

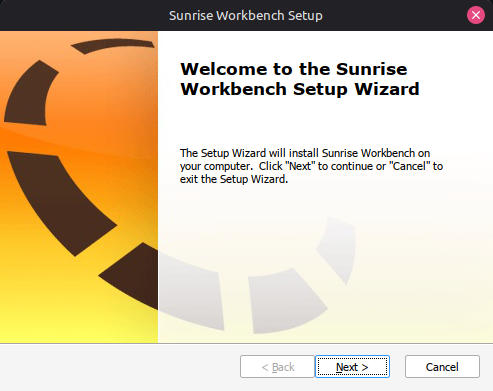

Step 3. Click Next in the installation wizard's welcome window.

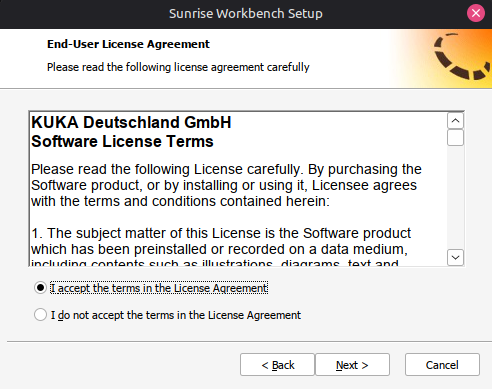

Step 4. Review the license agreement and accept its terms.

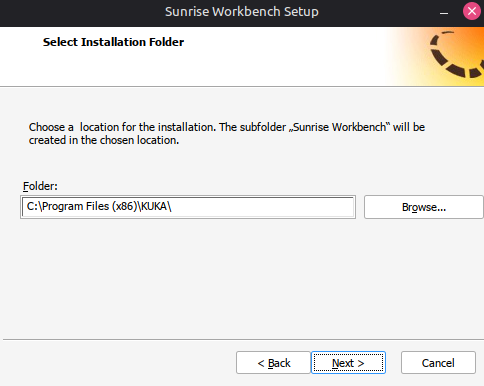

Step 5. Keep the default installation path unless you have a specific reason to change it.

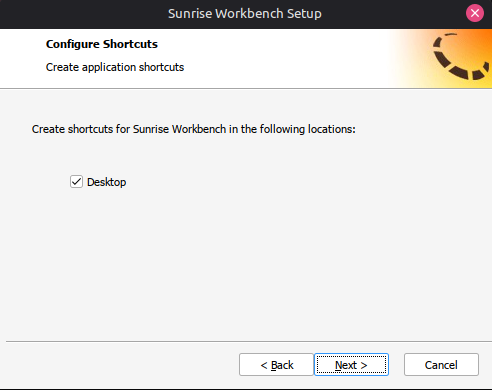

Step 6. Select Desktop to create a SunriseWorkbench desktop shortcut.
Step 7. Click Install and wait until all required components have been installed.

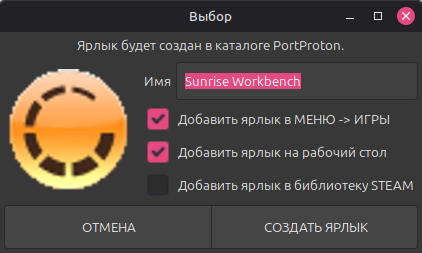

Click Create shortcut to place the shortcut on the desktop.
First launch

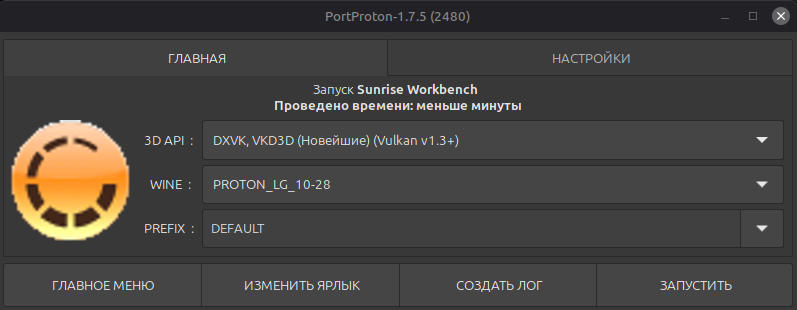

Step 8. Start SunriseWorkbench from the desktop shortcut. Click Run so that PortProton can initialize the application environment.

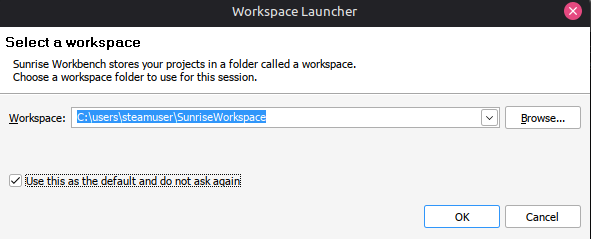

Step 9. The application asks for a workspace path. Keep the default value and select Use this as the default and do not ask again.

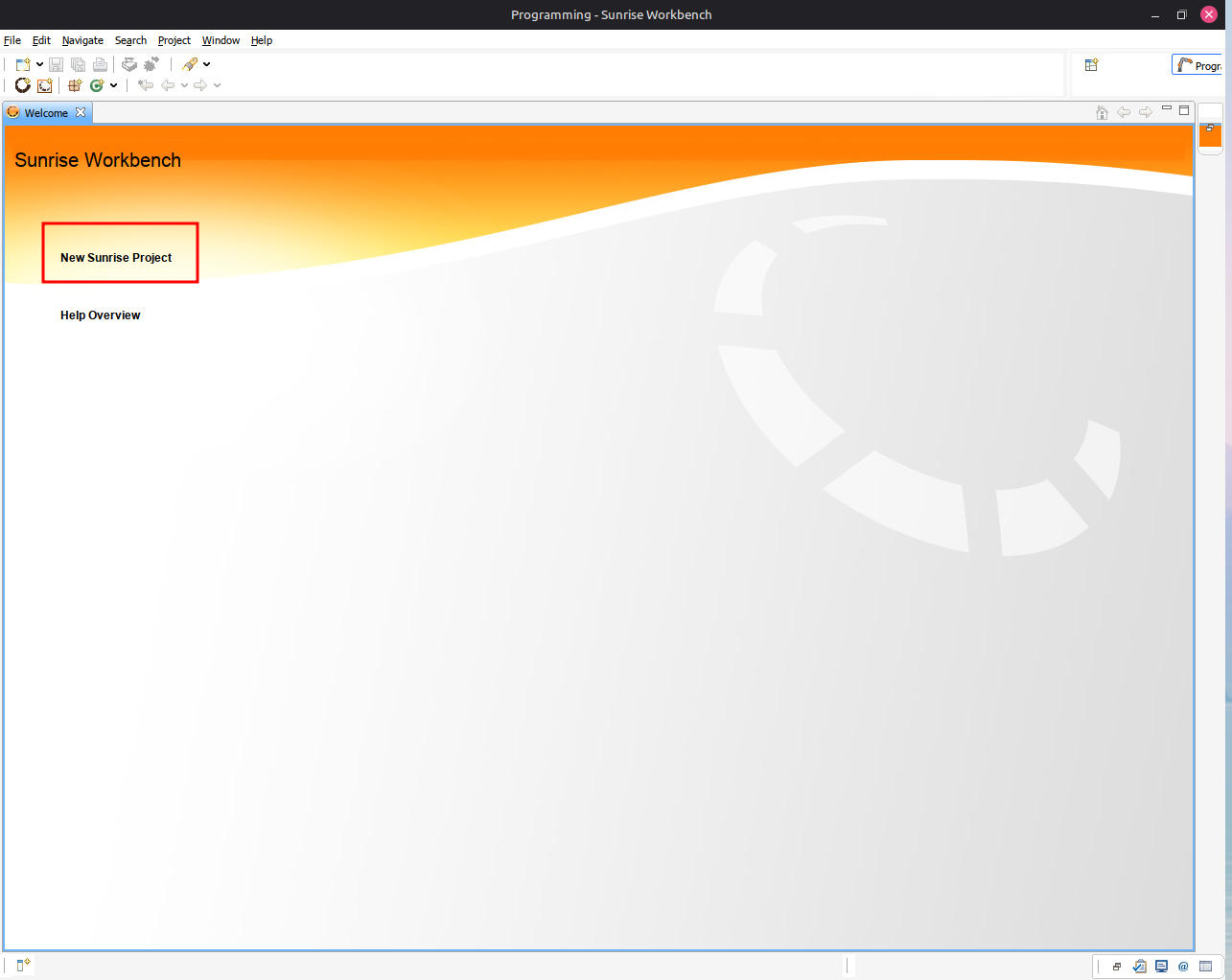

Step 10. After the main window loads, click New Sunrise Project.
!!! tip "Further configuration" See Creating a new project for project configuration instructions. You should also install the required libraries.
